RCF P 3108 1 x 8″ woofer 1.5″ c. driver

Features of the RCF P 3108 1 x 8″ woofer 1.5″ c. driver:

• 125 dB Max SPL, 300W RMS
• Weatherproof IP55 cabinet with UV protection
• Rotomolded single piece cabinet
• 90° x 60° constant directivity horn

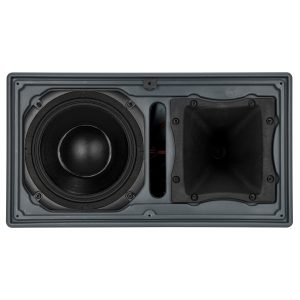

• 1 x 8″ woofer with 2.5″ voice coil
• 1 x 1.5″ voice coil RCF Precision compression driver
• Built-in LICC crossover with AMCDP protection
• Amphenol IP67 4 pole input connector

Specifications:

FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
125 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
11

SYSTEM SENSITIVITY:
94 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
300 W RMS

PEAK POWER HANDLING:
1200 W PEAK

RECOMMENDED AMPLIFIER:
600 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1800 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.0”, 1.5” v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
25 W AES, 50 W PEAK

SENSITIVITY (DB, 1W @ 1M):
109 dB, 1W @ 1m

WOOFER:
8”, 2.5” v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
300 W AES, 600 W PEAK

SENSITIVITY (DB, 1W @ 1M):
95 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Amphenol eco/mat IP 67
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Grey

HARDWARE:
4 x M8 + U-bracket and pair of spacers

GRILLE:
Aluminum with waterproof clothing

CABINET/CASE MATERIAL:
PE Low Density
Size
WIDTH:
493 mm / 19.41 inches

DEPTH:
250 mm / 9.84 inches

HEIGHT:
266 mm / 10.47 inches

WEIGHT:
10.6 kg / 23.37 lbs
