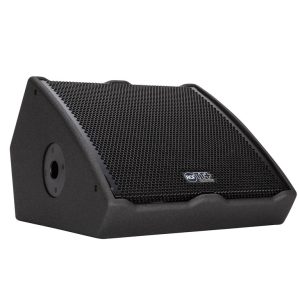

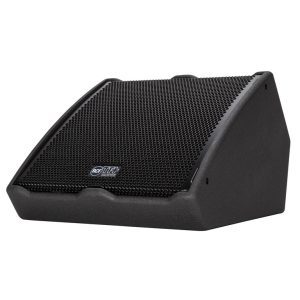

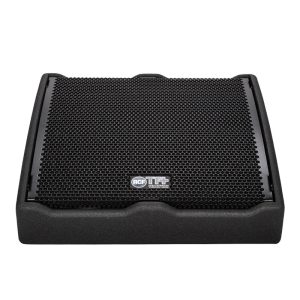

RCF TT 20-CXA 2 x 8″ woofer 1.4″ neo c. driver

Features of the RCF TT 20-CXA 2 x 8’’ woofer 1.4″ neo c. driver :

• 131 dB SPL Max
• 1000W RMS, two-way Class-D amplifier
• 90° x 70° constant directivity coverage
• Multifuncional cabinet with symmetrical transducers’ design
• FiRPHASE
• 2 x 8’’ neodymium Woofers, 2.5’’ voice coil
• Horn loaded 1.4” neo comp. driver, 3’’ voice coil
• RDNet Networked Management

Specifications:

Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
70°

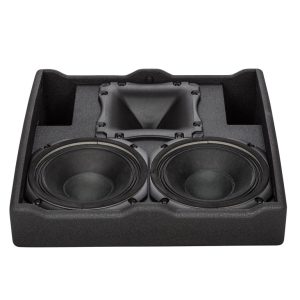

Transducers
COMPRESSION DRIVER:
1 x 1.5” neo, 3.0” v.c

WOOFER:
2 x 8” neo, 2.5” v.c

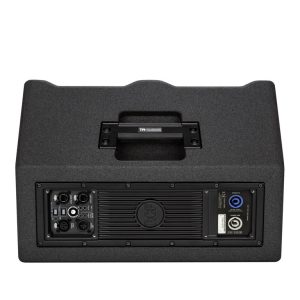

Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900 Hz

PROTECTIONS:
Thermal, HF

LIMITER:
Fast Limiter

CONTROLS:
Bypass, Linear/High Pass, Volume, RDnet on boar

RDNET:
Yes
Power section
TOTAL POWER:
2000 W Peak, 1000 W RMS

HIGH FREQUENCIES:
600 W Peak, 300 W RMS

LOW FREQUENCIES:
1400 W Peak, 700 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
1 TOP

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
318 mm / 12.52 inches

WIDTH:
445 mm / 17.52 inches

DEPTH:
450 mm / 17.72 inches

WEIGHT:
14 kg / 30.86 lbs
