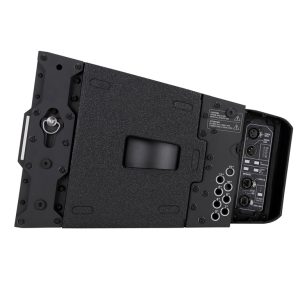

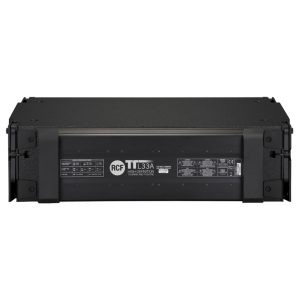

RCF TTL 33-A II 3-way line array module 2×8″

(1 customer review)

The RCF TTL 33-A II 3-way line array module that offers the highest performance from a small size line array. The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the TTL33-A the ideal tool for outdoor sound reinforcement

$9,834.00

UPC: 8024530009748 SKU: 8024530009748 Category: Tags:
RCF Canada

Features of the RCF TTL 33-A II 3-way line array module 2×8″ :

  • 1250 W switching amplifiers
  • wide, constant directivity, coverage angle
  • 6 high power neodymium transducers
  • High quality analog input board
  • 96 kHz, 32 bit DSP processing
  • Soft limiter and RMS protection
  • Maximum output per size available on the market
  • RDNet on board
Specifications

Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
135 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
3 x 1.0” neo, 1.5” v.c

MIDRANGE:
8” neo, 2.0” v.c

WOOFER:
2 x 8” neo, 2.5” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, RDNet Ethercon

OUTPUT CONNECTORS:
XLR, RDNet Ethercon

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
400 Hz – 1800 Hz

PROTECTIONS:
Thermal, HF

LIMITER:
Fast Limiter

CONTROLS:
HF Correction, cluster size, HPF

RDNET:
Yes
Power section
TOTAL POWER:
2500 W Peak, 1250 W RMS

HIGH FREQUENCIES:
500 W Peak, 250 W RMS

MID FREQUENCIES:
1000 W Peak, 500 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection/Forced

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
Array side fittings

HANDLES:
2 on side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
290 mm / 11.42 inches

WIDTH:
760 mm / 29.92 inches

DEPTH:
441 mm / 17.36 inches

WEIGHT:
33 kg / 72.75 lbs

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949.
The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 81.57 lbs
Dimensions 21.46 × 34.45 × 15.55 in
