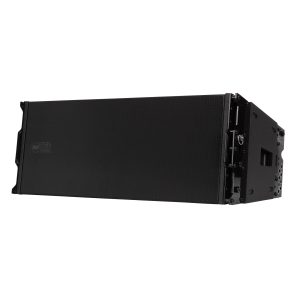

RCF TTL 33 WP line array module 1.0″ c. driver
The RCF TTL 33 WP line array module 1.0″ c. driver is a compact, wide dispersion, 3 way passive module that offers the highest performance from a small size line array.
Features of the RCF TTL 33 WP line array module 1.0″ c. driver:
- Very compact size
- Maximum output per size available on the market
- Wide, constant directivity, horizontal coverage angle
- 6 high power neodymium transducers
- Minimum weight
- Watertight multi-pole connector IP67
- LICC (Low Impedance Compensated Crossover Network)
- Baltic birch cabinet
Specifications:
FREQUENCY RESPONSE (-10DB):
55 Hz ÷ 20000 Hz
MAX SPL @ 1M:
133 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
15°
SYSTEM SENSITIVITY:
100 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm
POWER HANDLING:
600 W RMS
PEAK POWER HANDLING:
2400 W PEAK
RECOMMENDED AMPLIFIER:
1200 W
PROTECTIONS:
Active mosfet compression driver
CROSSOVER FREQUENCIES:
500 Hz
Transducers
COMPRESSION DRIVER:
1.0”, 1.4” v.c
NOMINAL IMPEDANCE (OHM):
8 ohm
INPUT POWER RATING:
75 W AES, 150 W PEAK
SENSITIVITY (DB, 1W @ 1M):
109 dB, 1W @ 1m
MIDRANGE:
8”, 2.5” v.c
NOMINAL IMPEDANCE (OHM):
8 ohm
INPUT POWER RATING:
250 W AES, 500 W PEAK
SENSITIVITY (DB, 1W @ 1M):
98 dB, 1W @ 1m
WOOFER:
2 x 8”, 2.5” v.c
NOMINAL IMPEDANCE (OHM):
8 ohm
INPUT POWER RATING:
600 W AES, 1200 W PEAK
SENSITIVITY (DB, 1W @ 1M):
95 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Amphenol eco/mat IP 67
OUTPUT CONNECTORS:
Amphenol eco/mat IP 67
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black
HARDWARE:

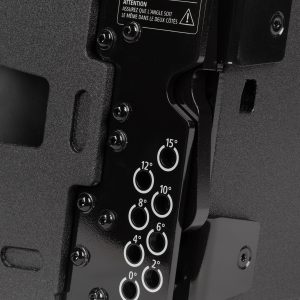

Array side fittings
HANDLES:
2 side
GRILLE:
Steel with waterproof clothing
CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
760 mm / 29.92 inches
DEPTH:
365 mm / 14.37 inches
HEIGHT:
290 mm / 11.42 inches
WEIGHT:
30 kg / 66.14 lbs
Weight | 74.96 lbs |
---|---|
Dimensions | 21.46 × 34.45 × 15.55 in |
Brand
RCF
In 1949, RCF’s three founders conjured a bold vision based on technology that was considered niche at the time. The real breakthrough came in the '60s when concert sound began to transition from small acoustic setups to big spaces, requiring electric amplification for voices and other low-volume musical instruments. In-depth knowledge in transducers and electronics qualified RCF to develop complete audio systems, bringing the company to a leading position in multiple audio markets over the years, from OEM transducers to Hi-Fi, public address, portable speakers, recording studios, and big concert systems. RCF’s passion for perfection drives the design of every product to create enlightening, unique, and delightful experiences for our customers. All speakers and components are designed from the ground up and developed internally to maximize the end result.
