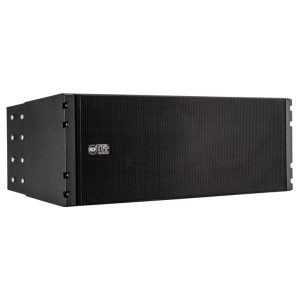

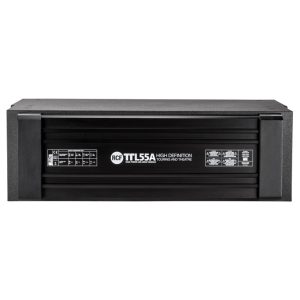

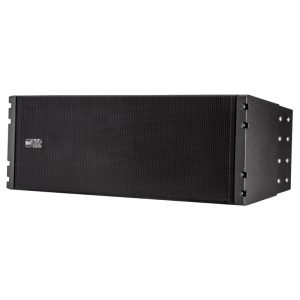

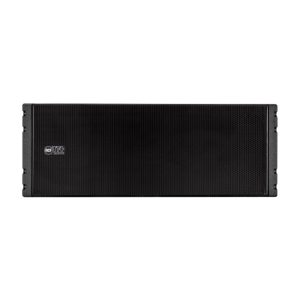

The RCF TTL 55-A WP STADIUM 2 x 12” neodymium woofers is a high power, three-way, active line array module engineered to deliver an incredible output for use in outdoor large spaces.
Features of the RCF TTL 55-A WP STADIUM 2 x 12” neodymium woofers :
- Maximum output per size on the market
- 3500 W, four-way digital amplification
- 2 x 12” high power neodymium woofers, 4” v. c.
- 10” neodymium midrange, 3.5” v. c.
- 3 x 1.5” neodymium compression drivers, 2.5” v. c.
- High quality analog input board
- 96 kHz, 32-bit DSP processing
- RDNet ON BOARD
- Tour grade Baltic birch cabinet and mechanics
Specifications:
Acoustical specifications
MAX SPL @ 1M:
143 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
7°
Transducers
COMPRESSION DRIVER:
3 x 1.5” neo, 2.5” v.c
MIDRANGE:
10” neo, 3.5” v.c
WOOFER:
2 x 12” neo
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
320 Hz – 1300 Hz
PROTECTIONS:
Thermal, Excurs., RMS
LIMITER:
Soft Limiter
CONTROLS:
DSP Controlled
RDNET:
Yes
Power section
TOTAL POWER:
7000 W Peak, 3500 W RMS
HIGH FREQUENCIES:
1000 W Peak, 500 W RMS
MID FREQUENCIES:
2000 W Peak, 1000 W RMS
LOW FREQUENCIES:
4000 W Peak, 2000 W RMS
COOLING:
Convection/Forced
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Array Fly-Ware
GRILLE:
Steel with waterproof clothing
COLOR:
Black
Size
HEIGHT:
380 mm / 14.96 inches
WIDTH:
1020 mm / 40.16 inches
DEPTH:
550 mm / 21.65 inches
WEIGHT:
60 kg / 132.28 lbs
Weight | 157.63 lbs |
---|---|
Dimensions | 19.65 × 45.04 × 35.79 in |
