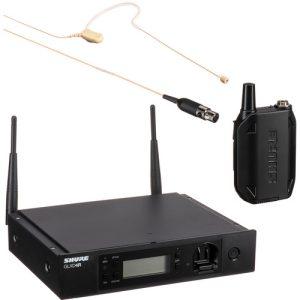

Shure GLXD14R/MX53-Z2 Wireless Headset System with MX153T/O Mic

Features of the Shure GLXD14R/MX53-Z2 Wireless Headset System with MX153T/O Mic:

• For Presenters and Broadcasters
• MX153 Omni Subminiature Earset Mic (Tan)
• Lightweight Bodypack Transmitter
• True Diversity Rackmount Receiver
• Two Removable Antennas
• 16-Hour SB902 Rechargeable Battery
• Expandable to 11 Mic Channels/200′ Range

Specifications:

System
Wireless Technology Digital 2.4 GHz
Included Transmitters 1 x Bodypack
Diversity True Digital Diversity
Max Operating Range 200′ / 61 m (Line of Sight)
Max Transmitters per Band 8
Latency 4 to 7.3 ms
Dynamic Range 120 dBA
Modulation Proprietary
Receiver
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced/Unbalanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output:
+18 dBV (Line Level)
XLR Output:
-12 dBV (Mic Level)
1/4″ Output:
+12 dBV
Phantom Power Protection On 1/4″, XLR Outputs
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity 1 x Micro-USB (Host Connection)
Impedance XLR Output:
100 Ohms (Balanced)
1/4″ Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
RF Output Power 10 mW (EIRP)
Spurious Rejection: >35 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC at 550 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing Steel
Dimensions 7.8 x 1.7 x 6.4″ / 197 x 42 x 163 mm
Weight 32 oz / 907 g
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW (EIRP)
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Muting Off/On Switch
Audio Input Level -8.4 dBV / 7.5 V p-p
Gain Range -18 to +42 dB (1 dB Steps)
Sync Method Proprietary
Antenna 1 x Internal, Fixed (Beltpack)
Power Requirements Battery
Battery Type 1 x Shure SB902 (Included, Replaceable)
Battery Charging Time .25 to 3 Hours
Approx. Battery Life 16 Hours (Lithium Rechargeable)
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Display & Indicators 1 x LED (Battery Status, Sync)
Housing Metal
Dimensions 2.5 x 3.6 x 0.9″ / 64.5 x 90.4 x 22.9 mm (without Antennas)
Weight 4.7 oz / 132 g (without Batteries)
Microphone
Microphone Type Earset
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 20 kHz
SNR 60 dB
Maximum SPL 107 dB SPL
Impedance 1.8 Kilohms
Sensitivity -41 dBV/Pa at 1 kHz
Dynamic Range 73 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Operating Voltage 1 to 5 V
Weight 0.7 oz / 19.76 g
