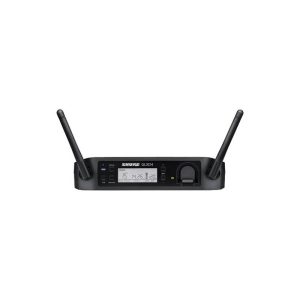

Shure GLXD4-Z2 Wireless Diversity Receiver with PS42 & 1/4 Wave Antennas

Features of the Shure GLXD4-Z2 Wireless Diversity Receiver with PS42 & 1/4 Wave Antennas:

• For Small Venues and Conference Rooms
• Single-Channel, Portable Tabletop Design
• True-Diversity Reception
• Fixed Antennas
• Integrated Battery Charging Station
• High-Resolution LCD Screen
• Expandable to 8 Mic Channels/200′ Range

Specifications:

Wireless Technology Digital 2.4 GHz
Diversity True Digital Diversity
Max Operating Range 200′ / 61 m (Line of Sight)
Max Transmitters per Band 8
Latency 4 to 7.3 ms
Modulation Proprietary
Receiver
Receiver Type Tabletop
Antenna 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels 1

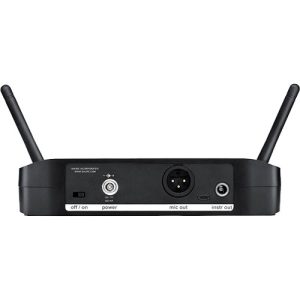

Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced/Unbalanced Output
Gain Range -20 to +40 dB (1 dB Steps)
Audio Output Level XLR Output:
0 dBV
1/4″ Output:
+8.5 dBV
Phantom Power Protection On 1/4″, XLR Outputs
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity 1 x Micro-USB (Host Connection)
Impedance XLR Output:
100 Ohms (Balanced)
1/4″ Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
Approximate RF Sensitivity -88 dBm
RF Output Power 10 mW (EIRP)
Spurious Rejection: >35 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC at 550 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing Plastic
Dimensions 7.2 x 1.6 x 4.6″ / 183 x 40 x 117 mm
Weight 10.1 oz / 286 g
