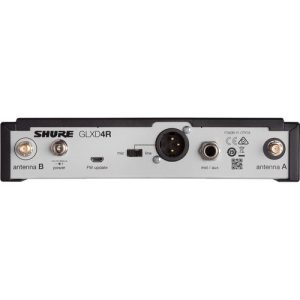

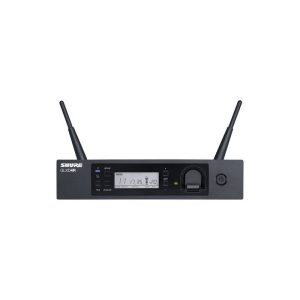

Shure GLXD4R-Z2 Wireless Diversity Receiver with PS43 & 1/2 Wave Antennas

Features of the Shure GLXD4R-Z2 Wireless Diversity Receiver with PS43 & 1/2 Wave Antennas:

• For Small Venues and Conference Rooms
• Single-Channel, 1/2 Rackspace
• True-Diversity Reception
• Removable Antennas
• Integrated Battery Charging Station
• High-Resolution LCD Screen
• Expandable to 11 Mic Channels/200′ Range

Specifications:

Wireless Technology Digital 2.4 GHz
Diversity True Digital Diversity
RF Channel Scanning Auto-Scan
Max Operating Range 200′ / 61 m (Line of Sight)
Max Transmitters per Band 8
Latency 4 to 7.3 ms
Modulation Proprietary
Receiver
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced/Unbalanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output:
+18 dBV (Line Level)
XLR Output:
-12 dBV (Mic Level)
1/4″ Output:
+12 dBV
Phantom Power Protection On 1/4″, XLR Outputs
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
Impedance XLR Output:
100 Ohms (Balanced)
1/4″ Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
Approximate RF Sensitivity -88 dBm
RF Output Power 10 mW (EIRP)
Spurious Rejection: >35 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC at 550 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing Steel
Dimensions 7.8 x 1.7 x 6.4″ / 197 x 42 x 163 mm
Weight 32 oz / 907 g
