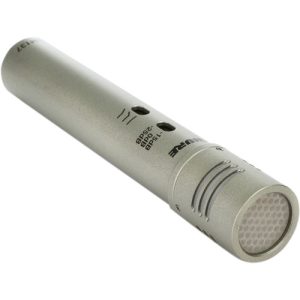

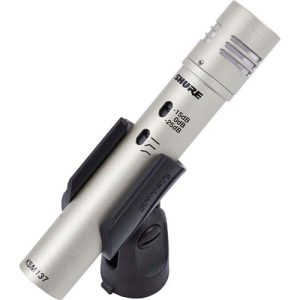

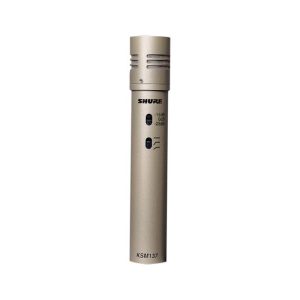

Shure KSM137/SL Cardioid Condenser Microphone with Windscreen & Case
Shure KSM137/SL Cardioid Condenser Microphone offers a wide 20 Hz to 20 kHz frequency response making it a flexible microphone for a variety of applications. The KSM137/SL features a cardioid element and permanently biased transducer design resulting in clean, accurate signal reproduction and frequency response.
Features of the Shure KSM137/SL Cardioid Condenser Microphone with Windscreen & Case:
- Condenser Transducer
- Cardioid Polar Pattern
- 3-Position Roll-Off Filter Switch
- 3-Position Pad Switch
Specifications:
Microphone
Capsule Condenser
Polar Pattern Cardioid
Pad -15 dB
-25 dB
High-Pass Filter 115 Hz, 6 dB/Octave
80 Hz, 18 dB/Octave
Performance
Frequency Range 20 Hz to 20 kHz
Maximum SPL 145 dB SPL
Impedance 150 Ohms
Sensitivity -37 dB at 1 kHz
Dynamic Range 131 dB
Signal-to-Noise Ratio 80 dB
Equivalent Noise Level 14 dB A-Weighted
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin
Power
Operating Voltage 48 V ± 4 V
Operating Current Consumption 4.65 mA
Physical
Dimensions ø: 0.8 x L: 4.8″ / ø: 20.32 x L: 121.92 mm
Weight 3.53 oz / 100 g
