Shure MVI-DIG Single-Channel USB Audio Interface
Shure MVI-DIG Single-Channel USB Audio Interface lets you stream and record a microphone or instrument to your Mac/Windows computer. It is well suited for podcasters, vloggers, singer-songwriters, and guitarists, or for people using a microphone when video-conferencing at home or on the go.
Features of the Shure MVI-DIG Single-Channel USB Audio Interface:
- Podcasts, Vlogs, Music, Conference Calls
- Single-Channel XLR + 1/4″ Combo Input
- 5 DSP Sound Presets
- For Mac/Windows, MFi-Certified for iOS
- Phantom Power

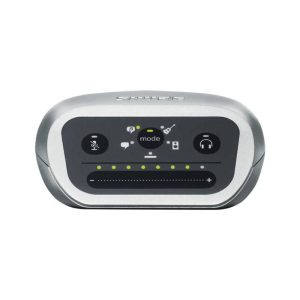

- Touch-Panel Control
- Headphone Output
- 24-Bit / 48 kHz
- Compatible with MOTIV Recording App
Specifications:
Form Factor Mobile
Display 1 x LED Touchscreen
Channels of I/O 1 Input
Max Sample Rate/Resolution 48 kHz / 24-Bit
Number of Mic Preamps 1
Input Level Adjustment via Touchscreen
Expansion Slots None
Gain/Trim Range Mic:
0 dB to +36 dB
Hi-Z:
+9 dB
Solo/Mute Mute per Input Channel
Connectivity

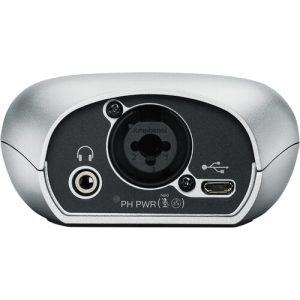

Analog Audio I/O 1 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Input
1 x 1/8″ / 3.5 mm TRS Headphone Output
Phantom Power 48 V
Digital Audio I/O None
Host Connection / USB Micro-USB (Class-Compliant)
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
Frequency Response 20 Hz to 20 kHz
Max Input Level Mic:
0 dBV
Hi-Z:
9 dBV
Impedance Mic :
2 Kilohms
Hi-Z :
1 Megohm
Digital Audio
Sample Rates 44.1 / 48 kHz
Bit Depths 16 / 24-Bit
Memory Card Slot None
Compatibility
OS Compatibility macOS 10.7 / 10.8 / 10.9 / 10.10
Windows 7 or Later
iOS 7 or Later
Included Software None
Mobile Device Compatibility iPhone 5, 5c, 5s, 6, 6 Plus
iPad 4th Gen.
iPad Air
iPad Air 2
iPad Mini 1st Gen., 2nd Gen., 3rd Gen.
iPod Touch 5th Gen.
Power
Power Requirements Lightning Bus Power, USB Bus Power
Physical
Dimensions 3.3 x 2.8 x 1.7″ / 84 x 72 x 42 mm
Weight 10.9 oz / 310.0 g
