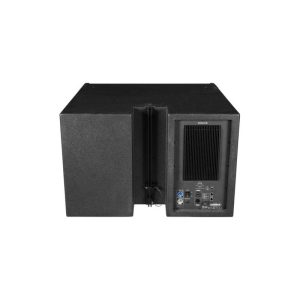

Wharfedale WLA-28SUBA Powered Subwoofer
$3,324.00
Specifications:
| System Type | Active 2×15 Subwoofer |
| Frequency Response (+/-3 dB) | 39 Hz-125 Hz |
| Frequency Range (-10 dB) | 35 Hz-163 KHz |
| Loudspeaker Sensitivity @ 1 W / 1 m) | 108 dB |
| Maximum SPL(peak)(@1 m) | 145 dB |
| Nominal Coverage (H x V) | – |
| Signal Processing | DSP based,8 presets resident in Input Module |
| Preset list | A) FLOWN B) FLOWN with 218 C) STACK D) STACK with 218 E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM |
| Amplifiers | |
| Amplifier Design | Class D |
| Power Rating: | 4000 W Peak / 2000 W Continuous |
| Power On Protection | Power switch on/off mute |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 80% Nominal Line Voltage |
| Driver Protection | Independent L/ H Limiters and DC |
| DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Input Sensitivity | +4 dBu |
| Maximum Input Level | +18 dBu |
| Input Impedance | Balanced: 10 KΩ |
| AC Power details – Power Supply | High Efficiency Switching Mode Power Supply |
| Connectors | |
| Input Connector | XLR 1/ 4〞Combo jack |
| Link Connector | Balanced XLR pin Connector |
| UPDATE | USB Type B |
| NETWORK (RS485) | RJ45 |
| AC Power Options | AC 100–240 V~,50/60 HZ |
| AC Input Connector | powerCON |
| AC Loop Through Connector | powerCON |
| Hardware – Rigging | Integral side plate |
| Enclosure Material and finish | 15 mm / 18 mm Plywood |
| Colour Options | Black Rhino Paint |
| Grille Material & Finish | 1.5 Steel |
| Unpacked dimensions – Height | 485 mm / 19.1″ |
| Width (Front) | 760 mm / 29.9″ |
| Width (Back) | 760 mm / 29.9″ |
| Depth | 775 mm / 30.67″ |
| Packed Dimensions – Height | 575 mm / 22.6″ |
| Width (Front) | 850 mm / 33.5″ |
| Width (Back) | 850 mm / 33.5″ |
| Depth | 865 mm / 34.6″ |
| Net Weight (Kg / lbs) | 67.0 Kg / 147.4 lbs |
| Gross Weight (Kg / lbs) | 74.3 Kg / 163.5 lbs |
Brand
Wharfedale Pro
At the heart of the WLA-28SUBA are 2 x 15″ LF drivers with 4.0″ voice coils. 8 x DSP Presets – built in – including FIR. Easy to get great results – fast. The AUDIENCE or STAGE presets can be used in an Inverted Stack Gradient array configuration.
Additional information
Specifications:
| System Type | Active 2×15 Subwoofer |
| Frequency Response (+/-3 dB) | 39 Hz-125 Hz |
| Frequency Range (-10 dB) | 35 Hz-163 KHz |
| Loudspeaker Sensitivity @ 1 W / 1 m) | 108 dB |
| Maximum SPL(peak)(@1 m) | 145 dB |
| Nominal Coverage (H x V) | – |
| Signal Processing | DSP based,8 presets resident in Input Module |
| Preset list | A) FLOWN B) FLOWN with 218 C) STACK D) STACK with 218 E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM |
| Amplifiers | |
| Amplifier Design | Class D |
| Power Rating: | 4000 W Peak / 2000 W Continuous |
| Power On Protection | Power switch on/off mute |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 80% Nominal Line Voltage |
| Driver Protection | Independent L/ H Limiters and DC |
| DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Input Sensitivity | +4 dBu |
| Maximum Input Level | +18 dBu |
| Input Impedance | Balanced: 10 KΩ |
| AC Power details – Power Supply | High Efficiency Switching Mode Power Supply |
| Connectors | |
| Input Connector | XLR 1/ 4〞Combo jack |
| Link Connector | Balanced XLR pin Connector |
| UPDATE | USB Type B |
| NETWORK (RS485) | RJ45 |
| AC Power Options | AC 100–240 V~,50/60 HZ |
| AC Input Connector | powerCON |
| AC Loop Through Connector | powerCON |
| Hardware – Rigging | Integral side plate |
| Enclosure Material and finish | 15 mm / 18 mm Plywood |
| Colour Options | Black Rhino Paint |
| Grille Material & Finish | 1.5 Steel |
| Unpacked dimensions – Height | 485 mm / 19.1″ |
| Width (Front) | 760 mm / 29.9″ |
| Width (Back) | 760 mm / 29.9″ |
| Depth | 775 mm / 30.67″ |
| Packed Dimensions – Height | 575 mm / 22.6″ |
| Width (Front) | 850 mm / 33.5″ |
| Width (Back) | 850 mm / 33.5″ |
| Depth | 865 mm / 34.6″ |
| Net Weight (Kg / lbs) | 67.0 Kg / 147.4 lbs |
| Gross Weight (Kg / lbs) | 74.3 Kg / 163.5 lbs |
