BZB Gear Universal Advanced IP/RS232/422 Controller with Joystick

(1 customer review)

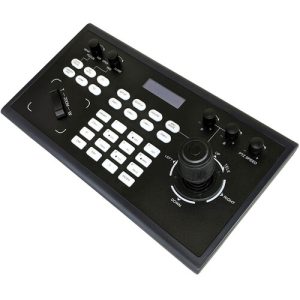

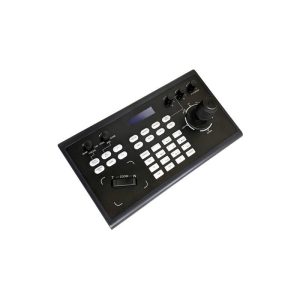

Main view of the BZB Gear BG-CJ-IPRSG2 Universal

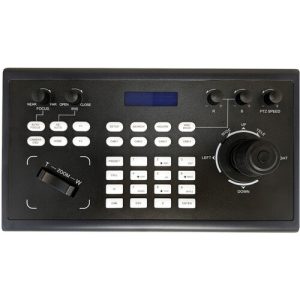

Front view of the BZB Gear BG-CJ-IPRSG2 Universal

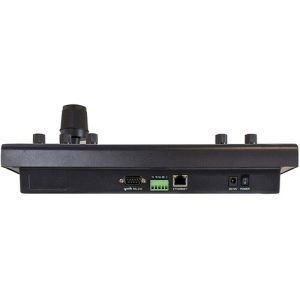

Side view of the BZB Gear BG-CJ-IPRSG2 Universal

BZB Gear Universal Advanced IP/RS232/422 Controller with Joystick offers presets including AWB, gain, iris, focus, red and blue gain, and speed control settings to control the finer settings on the PTZ camera. There are two IP control modes that use VISCA IP and ONIF.

$850.00
UPC: 850009357359UPC: 850009357359
Tags: Category: SKU: BG-CJ-IPRSG2

Features of the BZB Gear Universal Advanced IP/RS232/422 Controller with Joystick:

  • 4D Pan/Tilt/Zoom/Lock PTZ Control
  • IP & Serial RS-232/422 Communication
  • 2 x IP & 2 x Serial Control Modes
  • VISCA/VISCA IP/Pelco-P & D/ONVIF Support
  • Power-over-Ethernet (PoE) Support
  • Clear LCD Display
  • 12 VDC Power Supply Included

Specifications:

Number of Supported Cameras 4 Channels
Supported Control Protocols IP
Pelco-D
Pelco-P
RS-232
RS-422
VISCA
IP Streaming ONVIF: 1080p
Control Interface 1 x RJ45 (LAN)
1 x Terminal Block (RS-422)
1 x DE-15/DB-15 (RS-232)
Controls 1 x Pan/Tilt Joystick
1 x Zoom Rocker
1 x Auto-Focus Button
2 x Programmable Button
4 x Camera Selection Button
23 x Multifunction Button
Display
Touchscreen No
Power
PoE Support Yes
Power Connectors 1 x Barrel / Coaxial
Power Consumption 0.6 W
DC Input Power 12 VDC at 1 A
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 158°F / -20 to 70°C
Physical
Security Lock Support None
Dimensions 12.6 x 7.1 x 3.9″ / 32 x 18 x 10 cm
