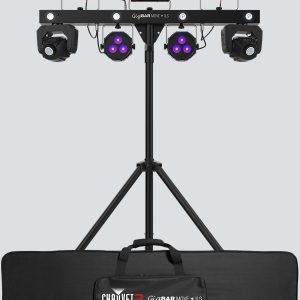

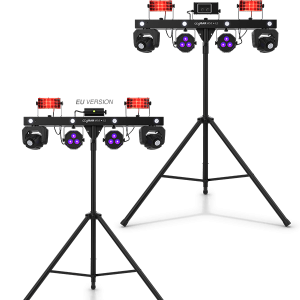

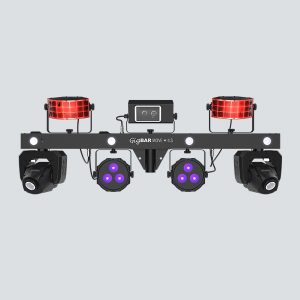

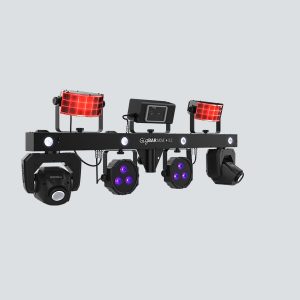

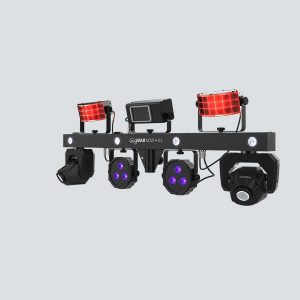

Chauvet DJ GigBAR Move + ILS

Features of the Chauvet DJ GigBAR Move + ILS:

5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
Control any ILS-enabled fixture wired or wirelessly (sold separately)
Use the included RF remote to trigger the built-in shows without needing line of sight
Powerful moving heads with separate color and gobo wheels allow for creative programming
Totem Mode keeps the moving heads focused on the dance floor
Easy navigation and access to all moving head functions directly from the full-color LCD display
System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
Individual control of each effect ensures your show looks the way you need it to
Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Specifications:

DMX Channels: 3, 28, or 50
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/180°
Colors:
(moving head): 9 + open, split colors, continuous scroll at variable speeds
Gobos:
(moving head): 9 + open, continuous scroll at variable speeds
Light Source:
(pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
(strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
Strobe Rate: 0 to 30 Hz
Beam Angle:
(moving head): 17°
(pars): 22°
(strobe): 30°
Field Angle:
(pars): 33°
(strobe): 62°
Coverage Angle:
(derby): 131°
(laser): 93°
Fits Tripod Size: 1.5 in (37.4 mm)
Illuminance:
(pars): 1,205 lux @ 2 m (per par)
(moving head): 5,140 lux @ 2 m (per head)
(strobe): 130 lux @ 2 m
Power Linking: 7 units @ 120 V; 12 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
81 W, 1.1 A @ 120 V, 60 Hz
79 W, 0.6 A @ 230 V, 50 Hz
248 W, 1.8 A @ 230 V, 50 Hz
Weight: (bar only) 31 lbs (14 kg)
Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
Approvals: CE, UKCA, RoHS, FCC, FDA
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Footswitch Operating Frequency: 433 MHz
Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch Battery: 9 V alkaline
Included Controllers: RF remote, wireless footswitch
Cable Length: 10 ft (3 m)
Tripod Thickness: 1.37 in (35 mm)
Optional Controllers: RF

WHAT’S INCLUDED

GigBar Move Plus ILS
Power cord
RF Remote
Carry bag
Tripod
Tripod carry bag
Footswitch
User Manual
