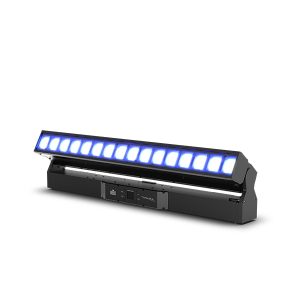

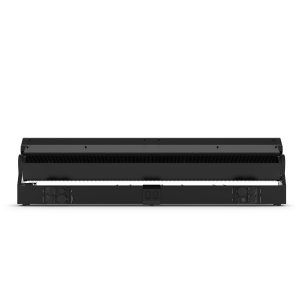

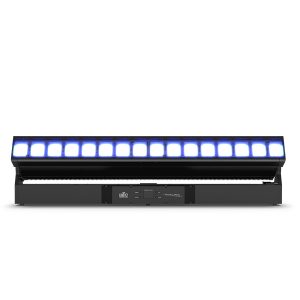

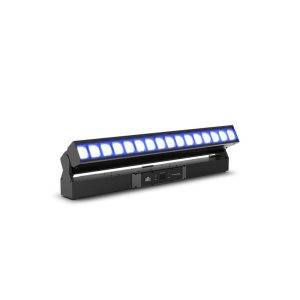

Chauvet Pro COLORado PXL Bar 16

Features of the Chauvet Pro COLORado PXL Bar 16:

• IP65-rated motorized tilting batten with (16) 45 W RGBW LEDs with a 5.8 ° to 47.9° zoom range, maintains pixel pitch between fixtures.
• Quiet and quick operation of 200° tilt
• Quiet and quick operation of (2) section zoom
• Fully pixel mappable
• Several built-in effects including virtual gobos and movement macros with foreground and background colour control for easy pixel animation effects
• DMX, SACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 5.8° – 47.9° zoom range for variable beam sizes
• TRUE1 compatible power input/output ports
• IP65-rated 5 pin DMX and TCP/IP input/output ports
• IP65-rated USBc software upload port
• Slotted Omega brackets for easy hanging on truss

Specifications:

• OPTICAL
  • Light Source: 16 LEDs (quad-colour RGBW) 45 W, (3.0 A), 8875 K, 50,000 hours life expectancy.
  • Color Temperature (calibrated white): 6122 K
  • CRI: 61.6
  • Beam Angle: 5.8° to 30.4°
  • Beam Angle single cell: 4° to 29.9
  • Field Angle: 8.9° to 42.2°
  • Field Angle single cell: 5.4° to 42.3°
  • Cutoff Angle: 10° to 47.9°
  • Cutoff Angle single cell: 6.1° to 45.5°
  • Zoom Range: 5.8° to 47.9°
  • Zoom Range single cell: 4° to 45.5°
  • Lumens (43.3°): 8,959
  • Illuminance (5.7°): 27,415 lux @ 5 m
  • Illuminance (43.3°): 1,294 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
• DYNAMIC EFFECTS
  • Tilt: 200°
  • Tilt Ranges: 60°, 180°, 200°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Dim Modes: 2
  • Dim Curves: 4
• CONSTRUCTION / PHYSICAL
  • Dimensions: 39.37 x 5.47 x 10.75 in (1000 x 139 x 273 mm)
  • Weight: 45.6 lb (20.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer
• CONNECTIONS
  • Power Connection: Bare end to Seetronic Powerkon IP65
• CONTROL
  • Control Protocol: Art-Net, Kling-Net, DMX, RDM, sACN
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 0 unit @ 120 V; 2 units @ 208 V; 2 units @ 230 V
  • Power and Current: 790 W, 6.60 A @ 120 V, 60 Hz
  • Power and Current: 771 W, 3.821 A @ 208 V, 60 Hz
  • Power and Current: 768 W, 3.485 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET, FCC
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT’S INCLUDED

• COLORado PXL Bar 16
• Seetronic Powerkon IP65
• 2 Omega bracket with mounting hardware
