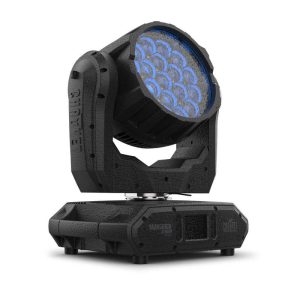

Chauvet Pro Maverick Storm 1 Wash IP65 Moving Head

Features of the Chauvet Pro Maverick Storm 1 Wash IP65 Moving Head:

• Fully featured IP 65 rated RGBW LED yoke wash fixture with pixel mapping and zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• Built-in colors for quick design possibilities
• Built-in virtual gobo wheel with background colors for impressive atmospheric effects
• Precise movement of pan, tilt, and zoom
• Quiet operation for a wide range of installation situations, both indoor and outdoor
• DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 11° – 42° Zoom angle for variable beam sizes
• True 1 compatible power input
• Battery backup display with auto rotate depending on fixture orientation
• Three setup menu presets and preset sync for cross loading to multiple like-fixtures for easy shop setup

Specifications:

Optical

• Light Source: 19 LEDs (quad-color RGBW) 20 W, (1.3 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 7° to 27°
• Field Angle: 11° to 42°
• Zoom Angle: 11° to 42°
• Lumens €“ Output: 6,000
• Illuminance (7°): 11,032 lux @ 5 m
• Illuminance (42°): 832 lux @ 5 m

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Move-in-Black: Yes
• Dim Curves: 4

Construction / Physical

• Dimensions: 12.5 x 16.3 x 18.77 in (319 x 414 x477 mm)
• Weight: 59 lb ( 27 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer
• IP Rating: 65
• Operating temperature range: 14°F – 104°F (-10°C – 40°C)

Connections

• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX
• DMX Channels Single Mode: 20, 96, 178, 216
• DMX Channels Dual Mode €“ Function: 8, 20, 26
• DMX Channels Dual Mode €“ Pixel: 57, 76, 152
• Art-Net Channels Single Mode: 20, 96, 178, 216
• Art-Net Channels Dual Mode €“ Function: 8, 20, 26
• Art-Net Channels Dual Mode €“ Pixel: 57, 76, 152

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
• Power and Current: 443 W, 3.75 A @ 120 V, 60 Hz
• Power and Current: 433 W, 2.21 A @ 208 V, 60 Hz
• Power and Current: 430 W, 1.91 A @ 230 V, 50 Hz

What’s Included

• Maverick Storm 1 Wash
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware

Optional Accessories

• Professional Clamp: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• IP Rated Seetronic® Powerkon Extensions
• MRUPLOAD software uploader
• Micro T-1 TRX G5 WDMX Transceiver
