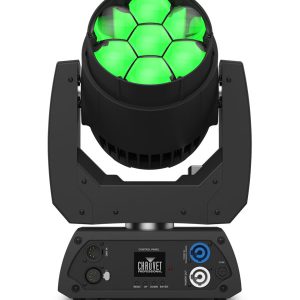

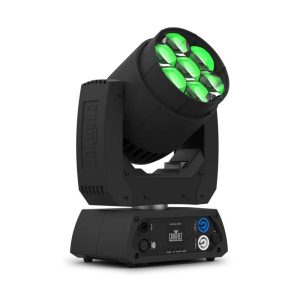

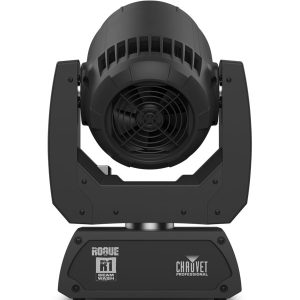

Chauvet Pro Rogue R1 BeamWash Moving Head

Features of the Chauvet Pro Rogue R1 BeamWash Moving Head:

• 7 RGBW LEDs, 40 W each
• 5-pin DMX input/output connections
• Unique lens design for excellent color blending and tight beam effects
• Fast, smooth pan and tilt movement
• 6 distinct dimming modes for advanced control
• Omega mounting bracket fits all Rogue and Maverick fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility

Specifications

Optical

• Light Source: 7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 4° to 37.8°
• Field Angle: 5° to 58.2°
• Zoom Angle: 5° to 58.2°
• Lumens €“ Source: 5,400
• Lumens €“ Output: 3,941, 1,483 Narrow
• Illuminance (5°): 13,939 lux @ 5 m
• Illuminance (55°): 378 lux @ 5 m

Dynamic Effects

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction / Physical

• Dimensions: 8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)
• Weight: 11.8 lb (5.35 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Connections

• Power Connection: Edison (Local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX
• DMX Channels: 14, 15, 19 or 21
• Modes/Personalities: 4 personalities (14, 15, 19, 21)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 8 units @ 120 V; 14 units @ 208 V; 16 units @ 230 V
• Power and Current: 179 W, 1.614 A @ 120 V, 60 Hz
• Power and Current: 175 W, 0.93 A @ 208 V, 60 Hz
• Power and Current: 157 W, 0.81 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP20, dry location

What’s Included

• Rogue R1 BeamWash
• Neutrik® powerCON® power cord
• Omega bracket with mounting hardware
