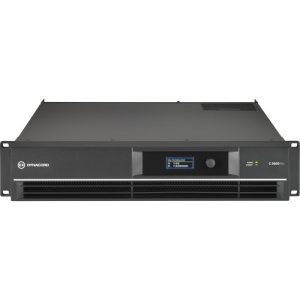

Dynacord C3600FDI 2x1800W DSP Install Power Amplifier

Features of the DSP Install Power Amplifier:

• Rock solid amplifier technology engineered in Germany
• Extremely powerful, proven audio performance
• Engineered for constant stability at 2 ohms
• Low and high impedance outputs and remote GPIO control
• Highly efficient standby power mode reduces running costs and power consumption up to 90%
• Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
• High-performance bulletproof voltage handling
• On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel; True channel grouping control with extra DSP capabilities including GEQ
• Intuitive, powerful control software makes configuration and real time control easy – up to 16 amp channels can be controlled and monitored simultaneously
• Advanced FIR drive to optimize loudspeaker settings brings premium feature into an installation form factor

Specifications:

• Load Impedance: 2Ω 2.7Ω 4Ω 8Ω
• Maximum Output Power, SIngle Channel: 2Ω:3200W; 2.7Ω: 2700W; 4Ω: 1900W 8Ω: 950W
• Maximum Output Power, Dual Channel: Load Impedance: 2Ω=3000W; 2.7Ω=2500W; 4Ω=1700W;
• 8Ω=900W; High Impedance: 70V Operation=2x 1250W; 100V Operation = 2x 2500W
• Maximum Output Power, Bridged: Load Impedance: 4Ω=6000W; 8Ω=3400W; High Impedance:
• 70V

Operation=Not Recommended

• Maximum RMS Voltage Swing, THD = 1%, 1kHz: 90.6V
• Voltage Gain ref.1kHz: 32.0dB
• IMD-SMPTE, 60 Hz, 7 kHz: <0.1%
• DIM 30: <0.05% (3.15 kHz, 15 kHz)
• Maximum Input Level: +21dBu
• Crosstalk: < -80dB (ref. 1 kHz, at 100 W/4 Ω)
• Frequency Response: 10 Hz to 21 kHz (±1 dB)
• Input Impedance, active balanced: 20kΩ
• Signal-to-Noise Ratio (A-weighted): >109dB
• Output Noise , A-weighted: <-68dBu
• Output Stage Topology Class: H
• Power Requirement: 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
• Power Consumption: 850W (⅛ Maximum Output Power @4Ω)
• Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
• Cooling: Front-to-rear, 3-stage-fans
• Safety Class: I
• Available Color: Black
• Height: 88mm (3.46″)
• Width: 483mm (19.02″)
• Depth: 462.4mm (18.2″)
• Weight Net: 18.2kg (40.12 lbs)
• Signal Processing: FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
• Mains Fuse: 120 V/100 V: T20AH
• Operating Temperature Range: +5°C to +40°C (40°F to +105°F)
• Remote Power ON/GPIO: Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection
• Total Harmonic Distortion: <0.05% (at 600 W/4 Ω MBW = 80 kHz, 1 kHz)
