Furman ELITE-20 PFI 20 Amp Conditioner Power HT Power Factor

Features of the Furman ELITE-20 PFI 20 Amp Conditioner Power HT Power Factor:

• SMP provides the highest level of protection available
• LiFT significantly reduces AC line noise
• E.V.S. protects equipment from dangerous overvoltage conditions
• Zero ground contamination circuitry protects critical digital components
• Power Factor Technology provides over 55 Amps peak charge surplus current for power-starved amplifiers
• Ultrasonic bi-filtering isolates digital and video circuits from analog components
• Retractable LED lamps illuminate a cabinet or rack full of equipment
• Detachable module for telco surge suppression and 3 pairs of cable / satellite TVSS isolated F-connectors
• 12 Volt triggering for remote control

Specifications:

General

• Family Elite Series
• Line Voltage 120 (Volts)

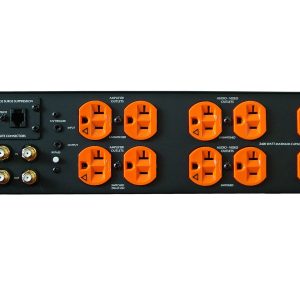

• Number of Outlets 13
• Number of Isolated Banks 3
• Outlet Descriptions (Ultra-Linearly filtered outlet – front panel)
  8 (Ultra-Linearly filtered outlets with additional ultrasonic filtering for either video or audio components, 4 with 12V triggering)
  4 (Power Factor Technology amplifier outlets – 4.5 amps RMS reserve – reactive load – over 55 amps peak charge, 2 with 5 second delay via 12V triggering)
• Rack Mountable Yes
• Rack Ears Included Yes
• Front Panel Meter(s) No
• Front Media Light(s) 2 Retractable LED lamps

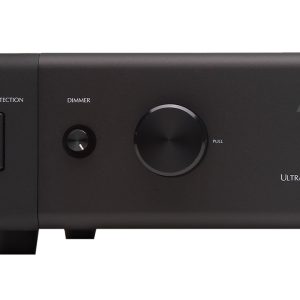

• Control On/Off switch and light dimmer knob on front panel. 12 Volt triggering for remote control.
• Voltage Regulation No
• Compliance NRTL-C
• USB Charging N/A
• Low Voltage Trigger 12V, In/Out
• Dimensions 4″ H x 17″ W x 14.75″ D (Standard 2 RU height without feet)
• Weight 18 lbs
• Power Consumption 12 Watts for display and control circuits independent of actual load

AC Protection

• AC Protection Technology Extreme Voltage Shutdown
  Series Multi-Stage Protection
  Non-sacrificial protection with zero ground contamination
• Under-Voltage Shut off 85V
• Over-Voltage Shut off 140V ±3V
• Maximum Current Rating 20 (Amps)
• Initial Clamping Level 188 VAC peak @ 3,000 Amps

Filtration

• Filtration Technology LiFT
• Filtration Rating Transverse (Differential) Mode:
  > 40 dB from 5Khz. – 100 kHz.
  >80 dB from – 100 kHz. – 1GHz.Common Mode:
  40dB from 10Hz. 30 kHz.
  20 from 40 kHz. 1MHz.
  (Linear attenuation curve from 0.05 to 100 ohms line impedance)
• Signal Line Protection Tel
  3 Cable/Satellite
