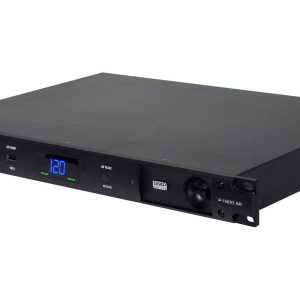

Furman P-1800 AR 15 Amp Voltage Regulator
The Furman P-1800 AR 15 Amp Voltage Regulator accepts input voltages over a wide AC voltage range and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance.
Features of the Furman P-1800 AR 15 Amp Voltage Regulator:
- Surge Protection
- Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- True RMS Voltage Regulation
- True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC lne voltage irregularities.
- USB Charger
- Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.
- Voltmeter / Ammeter
- Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.

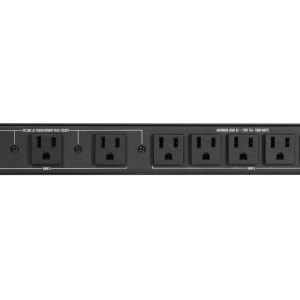

- Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination.
- Wall Wart Spacing
- Three widely spaced outlets accommodate bulky AC power transformers.
- 15 AMP Rating
- 15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
- Nine Total Outlets
- Nine total outlets (8 rear panel outlets and one front panel convenience outlet).
- BNC Lamp Connector
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
- Family Prestige Series
- Line Voltage 120 (Volts)
- Number of Outlets 9
- Number of Isolated Banks2
- Outlet Descriptions All 9 outlets regulated and conditioned – 8 on the rear panel and 1 on the front
- Rack MountableYes
- Rack Ears Included Yes
- Front Panel Meter(s)LED voltmeter/ammeter displays incoming voltage and output current draw
- Front Media Light(s)No
- Control Front panel:
– On/Off switch
– Voltage meter dimmer button
- Voltage Regulation Regulation capture range:
97 VAC to 137 VAC
- Compliances ETL us
- USB Charging front panel USB charger
- Low Voltage Trigger N/A
- AC Power Cord 10 ft. captive 3/14 AWG, black cord with NEMA 15 plug
- Dimensions 19″ W x 12.0″ D x 1.75″ H
- Weight 15 lbs
- Power Consumption 5 Watts
- AC Protection Technology True RMS Voltage Regulation
Extreme Voltage Shutdown
Series Multi-Stage Protection
Non-sacrificial protection with zero ground contamination
- Under-Voltage Shut off 90V
- Over-Voltage Shut off 140 VAC
- Maximum Current Rating 15 (Amps)
- Initial Clamping Level 188 VAC peak @ 3,000 Amps
- Filtration Technology LiFT
- Filtration Rating 10 dB @ 10 kHz
40 dB @ 100 kHz
50 dB @ 500 kHz
- Signal Line Protection No
- Other Specifications
- BNC socket with switch for rear rack lamp:12VAC 500mA max (lamp not included)
- Master Pack Qty 2
