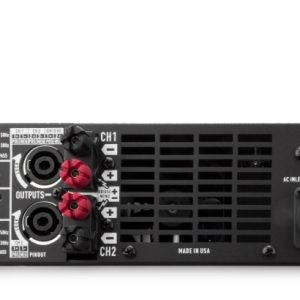

QSC PL380 1500W 2-Channel Amplifier
QSC PL380 1500W 2-Channel Amplifier – capable of providing up to 5,000W continuous and 8,000W peak with 70V / 100V direct drive on the CXD4.3Q and CXD4.5Q.
Features of the QSC PL380 1500W 2-Channel Amplifier:
- Power Light switch-mode power supply for highest efficiency and improved audio performance
- Flow-through air path and solid aluminum heat sinks for maximum cooling
- Data Port supports remote network control and monitoring via Q-SYS
- Detented gain controls with 1-dB steps for precise calibration
- Removable knobs with lock-out security plate to prevent unauthorized tampering
- User defeatable clip limiters and selectable low-frequency filter per channel (3 Hz, 30 Hz, or 50 Hz)
- Three selectable gain structures (26 dB, 32 dB, or 1.2 V)
- Front and rear panel LEDs indicate status of switch settings at a glance
- Parallel XLR/M and XLR/F connectors for simple loop-through connectivity
- Neutrik Speakon® and “Touch-Proof” binding post outputs
- Neutrik Powercon® power cable remains secure on the road
- 3 year warranty, plus optional 3 year extended service contract
- Linear Class H output circuit offer double the typical efficiency of Class B, reducing AC current consumption and cooling requirements
Specifications:
Model | 8Ω | 4Ω | 2Ω* |
PL325 | 500 W | 850 W | 1250 W |
PL340 | 800 W | 1250 W | 2000 W |
PL380 | 1500 W | 2500 W | 4000 W |
