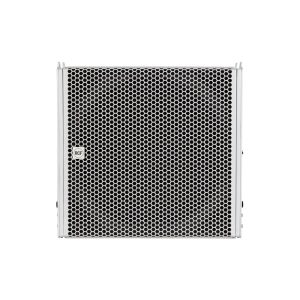

RCF HDL 35-AS 15” White Neodymium Woofer 134 dB Max SPL

The RCF HDL 35-AS 15” White Neodymium Woofer active flyable subwoofer module provides 2200W peak (1100W RMS) of fast Class-D amplification, an impressive 134 dB max SPL, and the highly capable RDNet network control and monitoring system.

$6,739.00

SKU: RCF-HDL 35-AS W Category: Tags:
RCF Canada

Features of the RCF HDL 35-AS 15” White Neodymium Woofer 134 dB Max SPL :

  • For Use with HDL 26-A Array System
  • 15″ Neodymium Woofer with 4″ Voice Coil
  • 2200W Class-D Amplifier
  • 134 dB Max SPL
  • 40 to 140 Hz Frequency Response
  • RDNet Networked Management
  • XLR Input and Thru
  • Onboard DSP for Level, Delay, and EQ
  • Baltic Birch Plywood Cabinet
  • Switch Mode Power Supply
Specifications

Configuration Active Subwoofer
Enclosure Type Line Array Subwoofer
Total Power Capacity 2200 W Peak
1100 W RMS
Amplifier Power Rating 2200 W Peak
1100 W RMS
Amplifier Class Class-D
Drivers
MF Driver None
LF Driver 1 x 15″ / 38.1 cm Woofer
LF Voice Coil 4″ / 10.2 cm
Magnet Neodymium
Performance
Frequency Response 40 Hz to 140 Hz
Maximum SPL 134 dB
Input Sensitivity +4 dBu
Protections Output Limiter, Thermal
Connectivity
Audio I/O 1 x XLR 3-Pin Female Balanced/Unbalanced Line Input (Lockable)
1 x XLR 3-Pin Male Balanced/Unbalanced Line Thru
Network I/O 1 x etherCON (RDNet) Input
1 x etherCON (RDNet) Output
USB None
Wireless Connectivity None
Signal Processing
EQ Yes
Parametric EQ Yes
Semi-Parametric EQ None
Alignment Delay Yes
Phase Adjustment Yes
Digital Signal Processing Delay, FIR Filter, User Settings
Power
AC Input Power 115 VAC, 60 Hz
230 VAC, 50 Hz
AC Power Connector 1 x powerCON Input (Locking)
1 x powerCON Output (Locking)
Physical
Mounting 1 x Bracket Point (Each Side)
1 x Bracket Point (Rear)
Handles 1 x Each Side
Cooling Convection
Construction Material Metal Grille, Plywood
Certifications CE, as per Manufacturer
Dimensions 17.5 x 17.9 x 20″ / 44.4 x 45.6 x 50.8 cm
Weight 66.1 lb / 30 kg

Weight 77.16 lbs
Dimensions 20.67 × 22.05 × 20.87 in

Brand

RCF

In 1949, RCF’s three founders conjured a bold vision based on technology that was considered niche at the time. The real breakthrough came in the '60s when concert sound began to transition from small acoustic setups to big spaces, requiring electric amplification for voices and other low-volume musical instruments. In-depth knowledge in transducers and electronics qualified RCF to develop complete audio systems, bringing the company to a leading position in multiple audio markets over the years, from OEM transducers to Hi-Fi, public address, portable speakers, recording studios, and big concert systems. RCF’s passion for perfection drives the design of every product to create enlightening, unique, and delightful experiences for our customers. All speakers and components are designed from the ground up and developed internally to maximize the end result.

GTR Direct is a proud dealer for RCF Canada

RCF Canada
