RCF P 1108T 1 x 8″ woofer 1 x 1.4″ c. driver

(1 customer review)

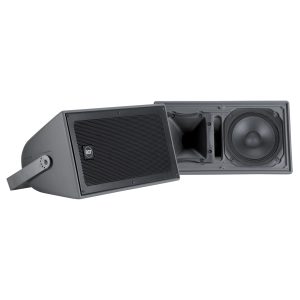

The RCF P 1108T 1 x 8″ woofer 1 x 1.4″ c. driver is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The high-frequency section includes a constant directivity CMD horn-loaded enclosure with a 1.4″ voice coil RCF Precision neodymium compression driver.

$1,049.00

UPC: 8024530008710 SKU: RCF-P 1108-T Category: Tags:
RCF Canada

Features of the RCF P 1108T 1 x 8″ woofer 1 x 1.4″ c. driver:

  • 121 dB Max SPL, 100W RMS
  • Weatherproof cabinet IP 55 with UV protection
  • 100 V line transformer
  • 90° x 60° constant directivity horn
  • Rotomolded cabinet available in grey or white
  • Built-in passive LICC crossover with AMCDP protection
  • 1 x 8″ woofer with 1.5″ voice coil
  • 1 x 1.4″ voice coil RCF Precision neodymium compression driver
Specifications

Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
121 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
11

SYSTEM SENSITIVITY:
95 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm

POWER HANDLING:
100 W RMS

PEAK POWER HANDLING:
400 W PEAK

RECOMMENDED AMPLIFIER:
200 W

PROTECTIONS:
PTC

CROSSOVER FREQUENCIES:
2200 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.0”, 1.4” v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
35 W AES, 70 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
102 dB, 1W @ 1m

WOOFER:
8”, 1.5” v.c

NOMINAL IMPEDANCE (OHM):
16 ohm

INPUT POWER RATING:
100 W AES, 200 W PEAK

SENSITIVITY (DB, 1W @ 1M):
91 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Neoprene Cable

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
60 W – 167 ohm

POWER SELECTION 2 (100 V):
30 W – 333 ohm

POWER SELECTION 3 (100 V):
15 W – 667 ohm
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Grey, White – RAL 9003

HARDWARE:
4 x M8 + U-Bracket and Pair of spacers

GRILLE:
Aluminum with waterproof clothing

CABINET/CASE MATERIAL:
PE Low Density
Size
WIDTH:
493 mm / 19.41 inches

DEPTH:
250 mm / 9.84 inches

HEIGHT:
266 mm / 10.47 inches

WEIGHT:
11.8 kg / 26.01 lbs

Brand

RCF

SINCE 1949 RCF BEGAN PRODUCING TRANSDUCERS IN 1949. The first products sold were microphones and loudspeakers. In the late ’60s, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs. RCF was one of the first European OEM suppliers for international brands, thanks to the company’s experience gained building high power transducers. In-depth know-how in transducers and electronics provided the perfect technological culture to allow RCF to develop complete pro audio systems, bringing the company to a leading position in multiple audio markets over the years. From Hi-Fi to public address, portable loudspeakers and big concert systems.

GTR Direct is a proud dealer for RCF Canada
RCF Canada
Weight 29.1 lbs
Dimensions 11.38 × 11.38 × 21.02 in
