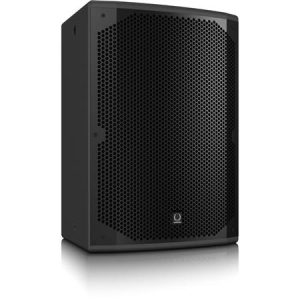

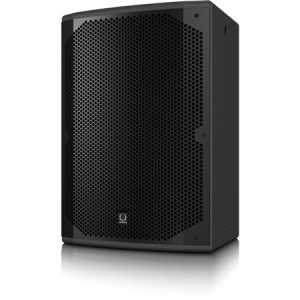

Turbosound TCX102 Loudspeaker

(1 customer review)

The Turbosound TCX102 Loudspeaker – is a 1,000 Watt compact 10″ passive two way loudspeaker that is ideally suited for a wide range of portable or installed speech and music sound reinforcement applications.

$570.00

SKU: TS-TCX102 Category: Tags:
Turbosound Canada

Features of the Turbosound TCX102 Loudspeaker:

  • 2 way loudspeaker for portable PA and installation applications
  • 250 Watts continuous, 1,000 Watts peak power
  • High excursion 10″ low frequency driver with low mass voice coil for improved transient response
  • 1″ high temperature dome compression driver with extended high frequency reproduction
  • Rotatable converging elliptical waveguide provides 90? H x 60? V dispersion
  • M10, M8 and M6 rigging points compatible with Turbosound and OmniMount* brackets
  • Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Concealed pole mount socket enables mobile applications
  • Integral handle for lifting and carrying
  • 15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
  • Powder coated perforated steel mesh grille with foam backing
  • Neutrik speakON* NL4 and barrier strip connectors
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.



Specifications

System
Frequency response 100 Hz – 20 kHz ±3 dB
68 Hz – 20 kHz -10 dB
Nominal dispersion 90° H x 60° V @ -6 dB points
Power handling (IEC) 250 W continuous, 1000 W peak
Sensitivity 95 dB (1 W @ 1 m)
Maximum SPL 119 dB continuous, 125 dB peak
Impedance 8 O
Components 1 x 10″ (254 mm) LF driver
1 x 1″ (25 mm) HF compression driver
Enclosure
Connectors 2 x Neutrik speakON* NL4
1 x barrier strip terminals
Wiring Pins 1+ / 1- input, pins 2+ / 2- link
Dimensions (H x W x D) 488 x 366 x 332 mm (19.2 x 14.4 x 13.0″)
Net weight 15.1 kg (33.2 lbs)
Construction 15 mm (5/8″) birch plywood
Finish Semi matt black paint (white optional)
Grille Powder coated perforated steel
Flying hardware M10 x 10, M8 x 4, M6 x 4 Points



Brand

Turbosound

For over 40 years Turbosound has repeatedly shown award-winning innovation and leadership in the world of high end professional audio, producing landmark products that have defined and shaped the live industry.
