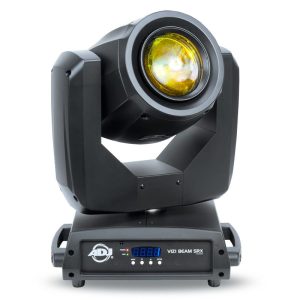

Main view of the professional moving head beam
ADJ VIZI-BEAM-12RX – professional moving head beam
September 23, 2020
Show all

ADJ VIZI-BEAM-5RX – professional moving head beam

(1 customer review)

GTR Direct Canada's choice for DJ gear


UPC: 819730015563 SKU: VIZ007 Category: Tag:
ADJ lighting solutions Canada

The ADJ Vizi Beam 5RX features a motorized focus and locking power In/Out connections for daisy chaining the power (not available on the previous Vizi Beam 5R).

Other professional features include: Frost filter to turn the hard edge beam to a wash, 8-facet prism, stepper motors for quick, precise movement.

The Vizi Beam 5RX Moving Head fixture is powered by the revolutionary Philips® Platinum 5R 189W discharge lamp technology (8000˚K, 3,000 hr). The powerful Platinum 5R has an output comparable to a 575W fixture, with double the output of a 250W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Beam 5RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class. It’s very tight, 5-degree beam with extreme light output makes it ideal for applications where a small beam is necessary.


• 2 DMX Channel Modes: 16 or 19 DMX channels

• Gobo scroll mode

• LED DMX 4-Button menu system

• 5-degree beam angle

• Auto X-Y repositioning

• 14 colors + white and Split Colors

• 17 static, fixed gobos + spot

• 8-facet Prism with macros

• Gobo Shake effect

• Independent gobo and color wheels

• Pan: 540-degree

• Tilt: 270-degree

• Pan/Tilt Invert

• Built-In Pan/Tilt Macros

• 16-Bit Pan/Tilt Positioning

• Motorized focus

• Shutter: Pulse effect; random strobe slow to fast

• Mechanical Dimming: 0% – 100%

• Strobe effect

• Frost Filter

• Stepper motors with micro stepping

• Omega Quicklock Brackets included

• DMX: 3-pin XLR In/Out
• With Wired Digital Communication Network
• Strobe Rate: 0.75-24.5HZ
• DB Rating @ 1Meter: Front: 45; Back: 47; Left: 46; Right: 46; Top: 47

• Light output: 770000 LUX  @ 5M, 220000 LUX @ 10M (5-degree beam)

• Locking Power In/Out to daisy chain power

• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Cable Length: 1.5M (IEC)

• Lamp: Philips® Platinum 5R 189W discharge, 8,000˚K – 3,000 hr. long life

• Dimensions (LxWxH): 394x325x522mm / 15.5” x 12.75” x  20.5”

• Weight:  19 kg. / 42 lbs
• cETLus Approved (Control #4000358)



American DJ

ADJ is known for reliable products, exceptional customer support and innovation, having recently pioneered a number of market-leading IP65-rated lighting solutions. The company’s range includes moving head luminaires, static washes, beam effects, audience blinders, strobes, DMX control hardware/software, LED video panels and related accessories, as well as fog, haze and other atmospheric effect generators. ADJ serves both the AVL rental and installation markets. Its products are used worldwide for events, productions and festivals of all sizes, and are also installed in a wide variety of venues ranging from churches, and theatres to trampoline parks and roller rinks, nightclubs and lounges to concert venues and event centers.

The ADJ family of brands include: ADJ Lighting, Elation Professional, Avante Audio, American Audio, Acclaim Lighting, Magmatic Effects, Obsidian Control Systems, Eliminator Lighting, Global Truss America, DuraTruss, Accu-Cable and Accu-Stand.
