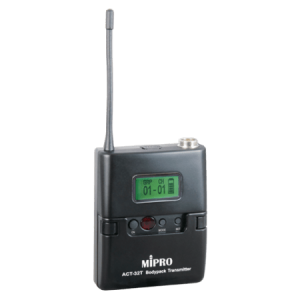

Mipro ACT-32T Miniature Bodypack Transmitter

Features of the Mipro ACT-32T Miniature Bodypack Transmitter :

• On top of the housing is equipped with an antenna, mute button and mini XLR connector. The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug. A remote-control mute jack is for easy activation of the mute function.
• An LCD on the panel displays the working channel, battery status and operating information.
• Powered by two AA alkaline batteries.
• Innovatively designed battery cover allows easy access to operate buttons and prevent accidental operation.
• High/low impedance for microphone or guitar / line inputs. Five selectable gain settings with Auto Limiter to prevent distortion.

Specifications:

Mic Capsule Modules Paired lavalier mic MU-55L or optional other MIPRO’s lavalier and headworn mic capsule modules.
Max. Audio Input 0 dBV
Display Green backlit LCD
Frequency Range UHF 480 ~ 934 MHz (country dependent)
Bandwidth 24 MHz
Input Impedance Setting High impedance
RF Power Output 10 mW / 50 mW switchable (country dependent)
Spurious Emission < 4 nW
Battery Two AA alkaline
Dimensions 63 × 82 × 22 mm (W×H×D)
Weight Approx. 86 g
Note Refer to the actual product in the event of product discrepancy.
